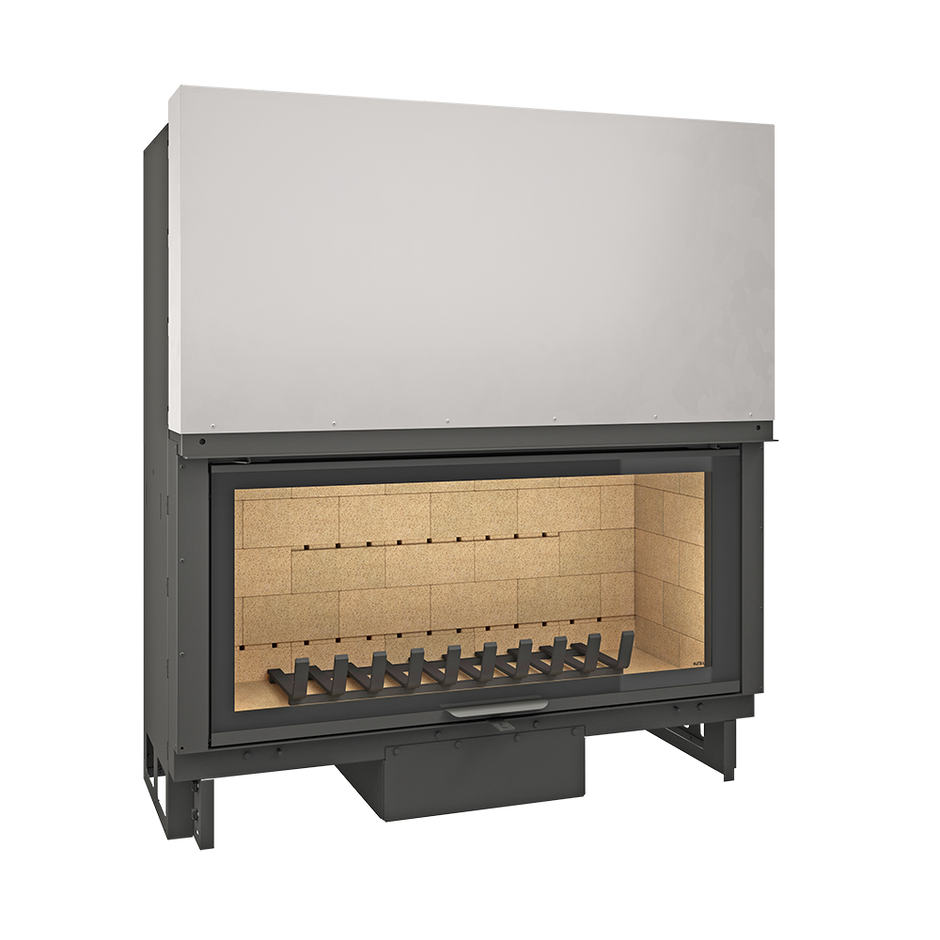

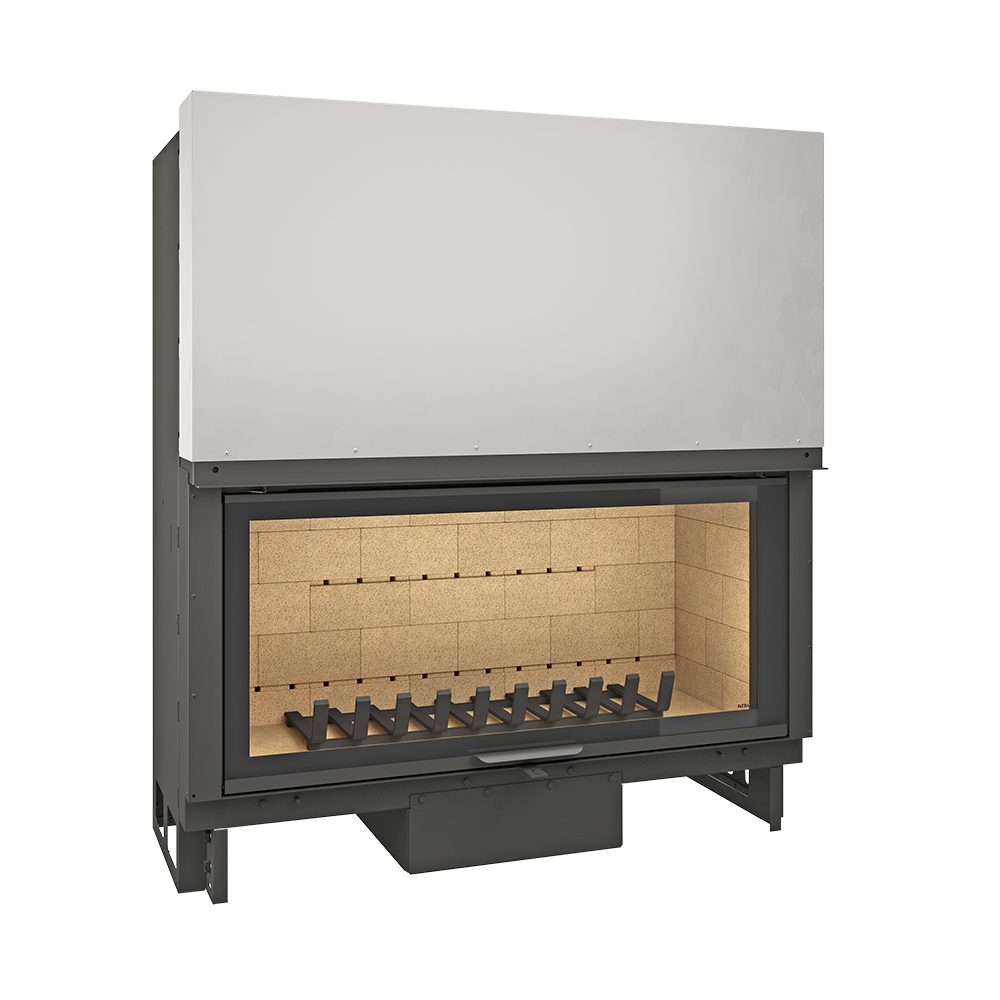

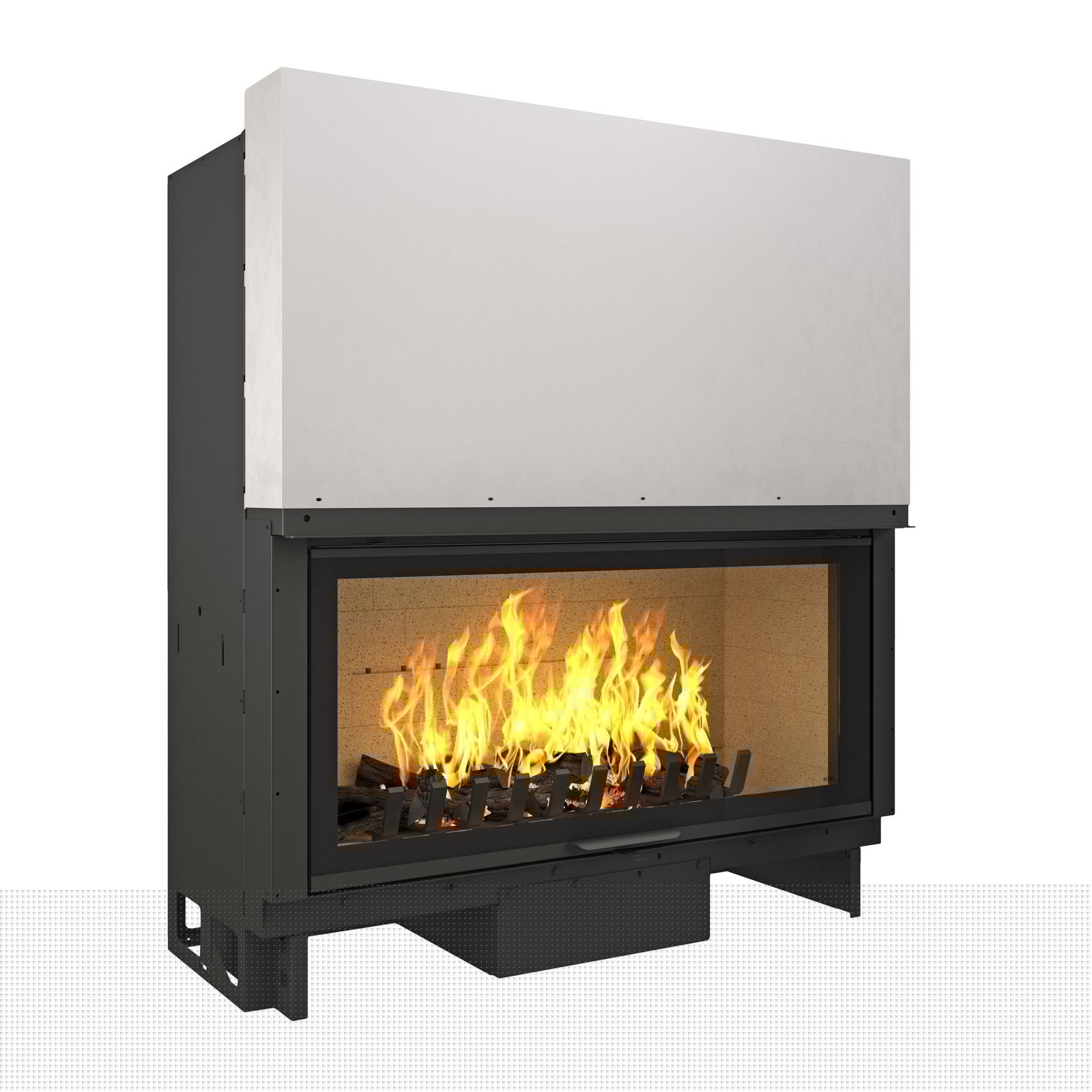

Steel fireplace insert ATRAFLAM 16/9 1000 PLUS BP, with straight glass, natural fireclay bricks
Couldn't load pickup availability
Firewood storage and firewood boxes
Do you have any questions?
Description
Atraflam 16/9 1000 Plus BP – more warmth, efficiency and elegance.
The latest addition to the ATRA single-sided collection – the Atraflam 16/9 1000 Plus BP – meets the highest requirements for new construction homes. It is a space-saving fireplace that features a more airtight construction, an integrated dual combustion system and clean glass technology, ensuring efficient and economical heating.
Main advantages:
• Space-saving design – a great solution for homes of various sizes,
• Large combustion chamber – holds more firewood, making burning more comfortable and less frequent,
• Clean glass system – air circulation from above prevents the glass from becoming sooted,
• Dual combustion system – more efficient fuel combustion, lower emissions and longer heat retention,
• Suitable for A++ class homes – the closed combustion system allows for maximum heat retention in energy-efficient homes,
• Natural fireclay bricks – greater heat storage and even distribution, ensuring long-term efficiency.
More coziness, more comfort.
This wood-burning fireplace not only creates a warm atmosphere, but also helps save energy by retaining more heat with lower fuel consumption.
Order now and create a modern, cozy and efficient heating solution for your home!
Technical specifications
Height | 1325.5 mm |
Width | 1170mm |
Depth | 512.5 mm |
Weight | 366 kg |
Smoke outlet | Ø 197 mm |
Chimney outlet options | Upper |
Rated power | 14.0 kW |
Efficiency | 75% |
Heating volume | up to 1166 m³ |
CO emissions | 0.10 % |
Dust emission | 19 mg/Nm³ |
NOx emission | 71 mg/Nm³ |
OGC emission | 95 mg/Nm³ |
Closed combustion | yes |
Clean combustion system | yes |
External air intake | yes |
