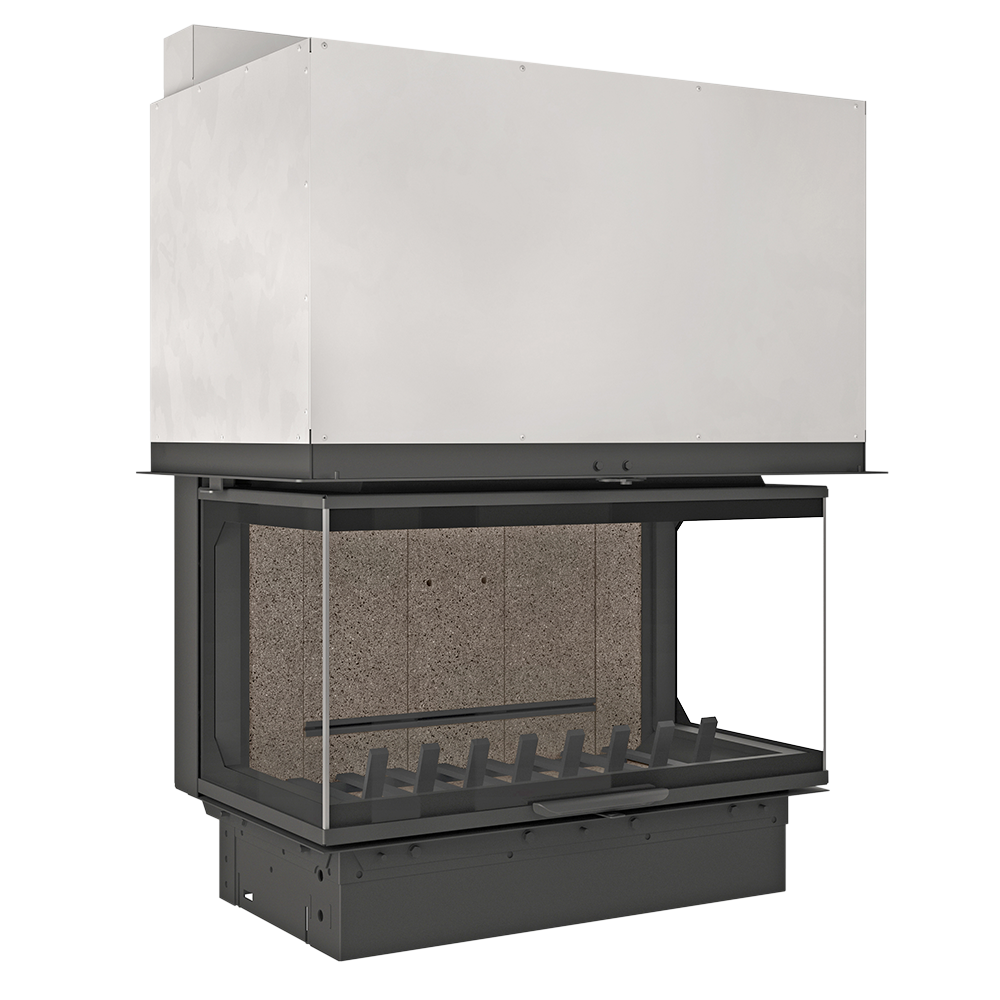

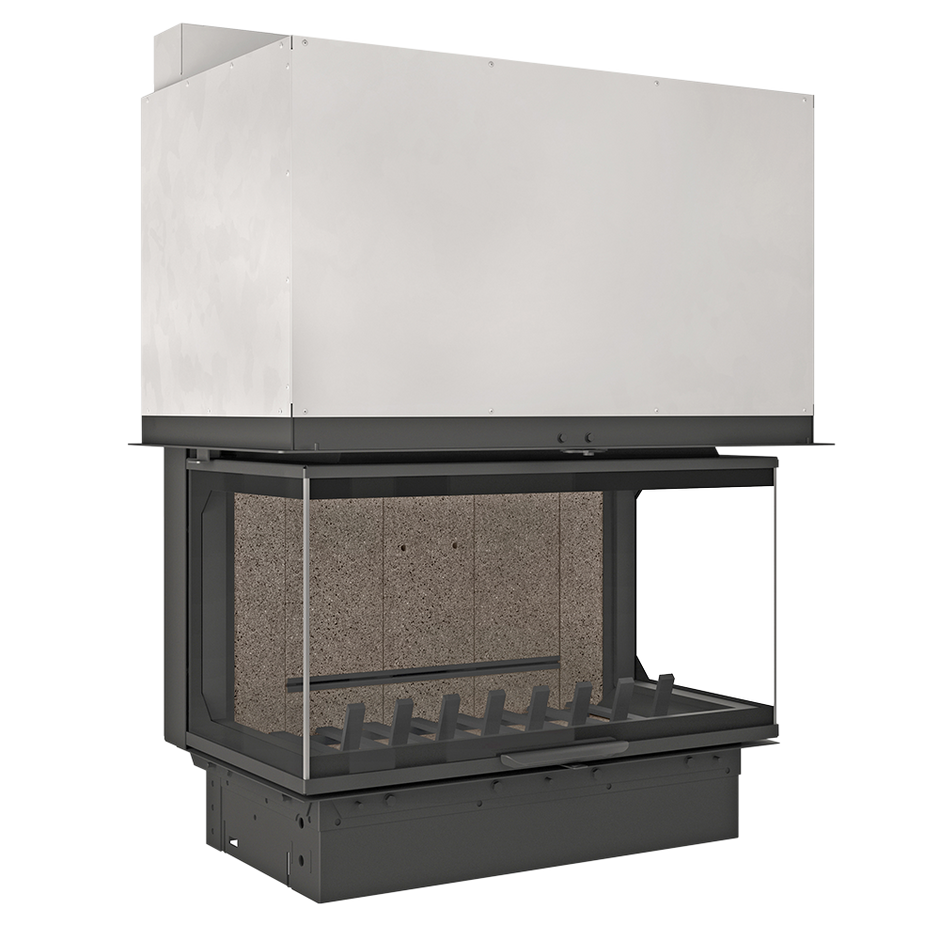

Steel fireplace insert ATRAFLAM 16/9 800 3V, with three glasses, dark panels
Couldn't load pickup availability
Firewood storage and firewood boxes
Do you have any questions?
Description
Compact and Efficient Fireplace "Atraflam 16/9 600 BP" with dark colored panels.
The Atraflam 16/9 600 BP is an exceptional choice for those looking for a modern, powerful and visually impressive fireplace. Its dark-colored panels create a sophisticated interior accent that fits perfectly with both minimalist and classic decor,
Outstanding features:
- Dark-colored fireclay panels not only add elegance, but also effectively accumulate and distribute heat, maintaining a comfortable temperature in the room for longer.
- Powerful heating system – 8–12 kW thermal output ensures optimal heat distribution even in large spaces.
- Advanced combustion technology – dual combustion system reduces soot build-up, optimizes fuel consumption and ensures cleaner combustion,
- Extremely robust steel body – resistant to high temperatures and ensuring durability,
- Wide panoramic glass – allows you to enjoy the view of the flame from different angles, adding more comfort to your home,
- Integrated air intake connector – effectively regulates the air flow and prevents cold air from entering the room, thus ensuring a better combustion process,
- Simple operation – the ability to choose between hinged or lift-up doors, depending on needs and interior solutions,
Atraflam 16/9 800 3V BP – the beauty of fire from all sides.
This is a fireplace capsule for true fire lovers - thanks to 3 large glasses, you can enjoy the spectacle of flames from all sides. The black silk-screened glass of the Atraflam 16/9 800 3V BP elegantly emphasizes the simplicity of the fireplace lines, giving it a modern and luxurious look. The clean glass system integrated from above ensures a clean view without soot, so you can enjoy the beauty of the fire to the fullest.
This fireplace also has a clean burning and closed combustion system, making it a great choice for new construction passive houses.
Graphite-colored fireclay panels add elegance and help to efficiently accumulate and distribute heat.
Firewood storage grates – convenient and efficient firewood burning.
Technical characteristics:
- Power: 8–12 kW – suitable for both medium and large-sized rooms
- Efficiency factor: 85% – ensures lower fuel consumption and retains heat longer
- Fuel type: Wood - a natural, ecological and economical heating method
- Firewood length: up to 50 cm – comfortable and efficient burning
- Air intake: from outside – cleaner combustion and optimal air flow regulation
- Chimney diameter: 180 mm – ensures effective draft
- Atraflam – Warmth, Comfort and Elegance for Your Home
This fireplace will not only provide comfort, but will also become a stylish element of the interior. Dark colored panels add luxury, and innovative technologies ensure efficient and environmentally friendly heating.
Discover a high-quality and modern fireplace for your home – choose the Atraflam 16/9 600 BP or the Atraflam 16/9 800 3V BP with dark-colored panels!
Technical specifications
Height | 1203.5 mm |
Width | 956mm |
Depth | 527 mm |
Weight | 221 kg |
Smoke outlet | Ø 177 mm |
Chimney outlet options | Upper |
Rated power | 15.8 kW |
Efficiency | 79% |
Heating volume | up to 1316 m³ |
CO emissions | 0.08% |
Dust emission | 37 mg/Nm³ |
NOx emission | 78 mg/Nm³ |
OGC emission | 60 mg/Nm³ |
Closed combustion | yes |
Clean combustion system | yes |
External air intake | yes |
