Steel fireplace SCAN 5003 FR, with corner glass

Steel fireplace SCAN 5003 FR, with corner glass.

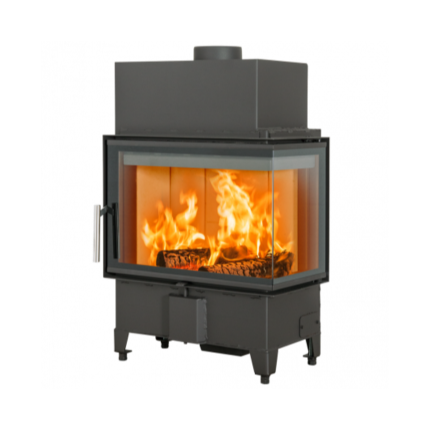

Scan 5003 FR is a modern corner fireplace with a horizontal flame view.

Scan 5003 FR is a modern corner built-in fireplace designed to bring coziness and warmth to your home.

This model is distinguished by a horizontal flame view and large windows on two sides: front and right (FR).

Main features:

• Corner design: Scan 5003 FR is a right-sided corner fireplace that allows you to enjoy the view of the flame from different corners of the room,

• Large glass surfaces: The wide glass provides a clear and wide view of the flame, comparable to a home cinema screen,
• Efficiency: The fireplace has an efficiency factor of 83% and a nominal power of 5.7 kW, so it effectively heats rooms up to 160 m²,
• Fuel type: For firewood up to 45 cm long,
• Clean combustion system: Ensures low CO emissions (0.08%) and low dust content (11 mg/Nm³), making the fireplace environmentally friendly,
• External air connection: The ability to connect external air ensures efficient combustion and is suitable for passive houses.

Technical data:

• Dimensions: Height – 1031 mm, width – 638 mm, depth – 389 mm,
• Weight: 128 kg,
• Chimney connection: Ø 150 mm, with the option of connecting at the top or at the back,
• Combustion chamber finish: Light-colored panels give a modern look.

Installation and safety:

• Distance to flammable materials: Sides – 400 mm, rear – 400 mm, front – 800 mm,
• Floor protection: If the fireplace is placed on a flammable floor, it is necessary to use a non-flammable base plate in accordance with local regulations,
• Fresh air connection: It is recommended to use a Ø 100 mm pipe with a maximum length of 6 meters with one elbow,

Scan 5003 FR is a stylish and efficient solution for your home, providing not only warmth but also aesthetic pleasure.
