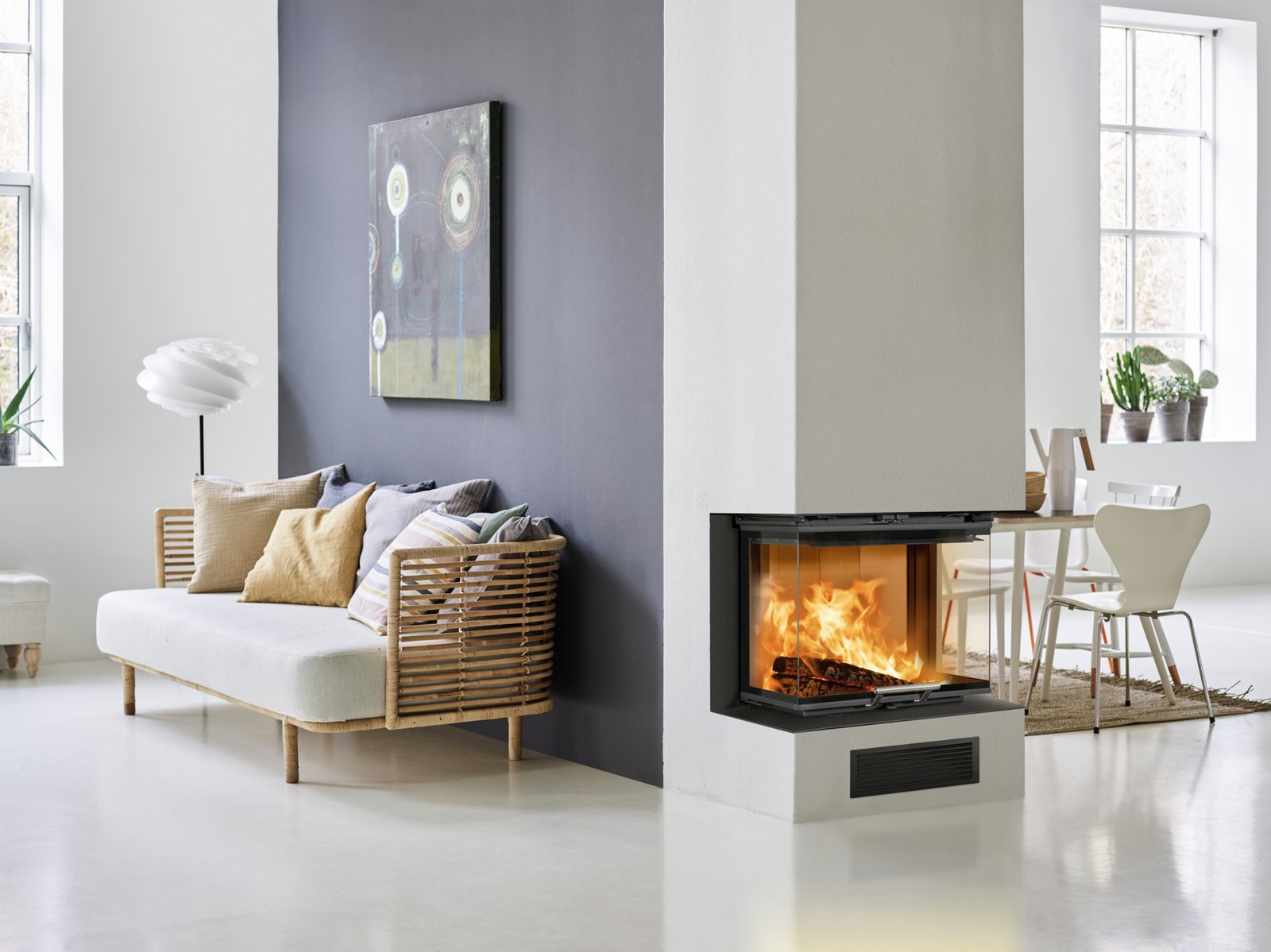

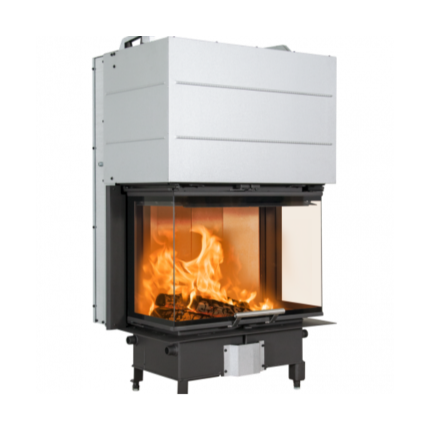

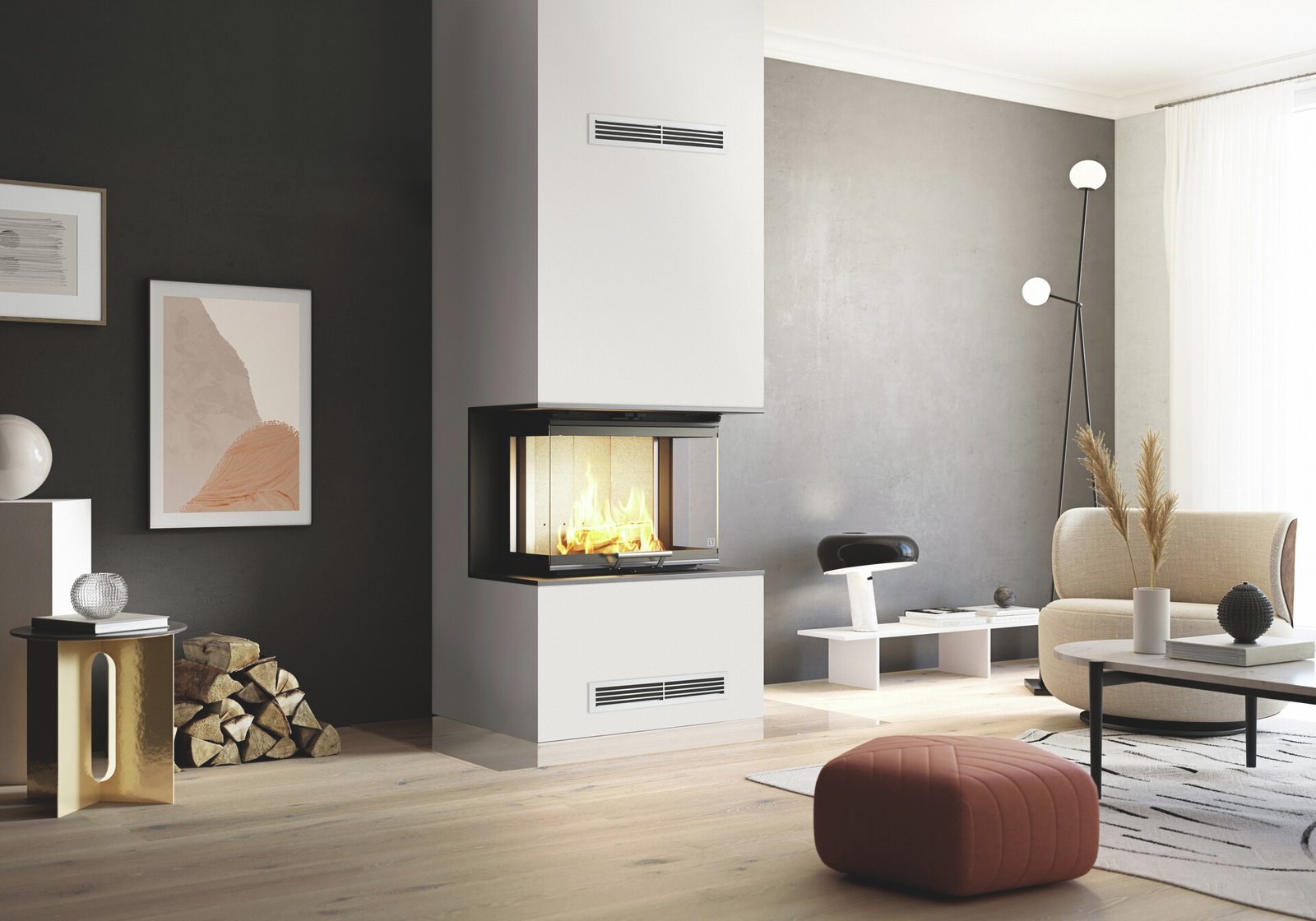

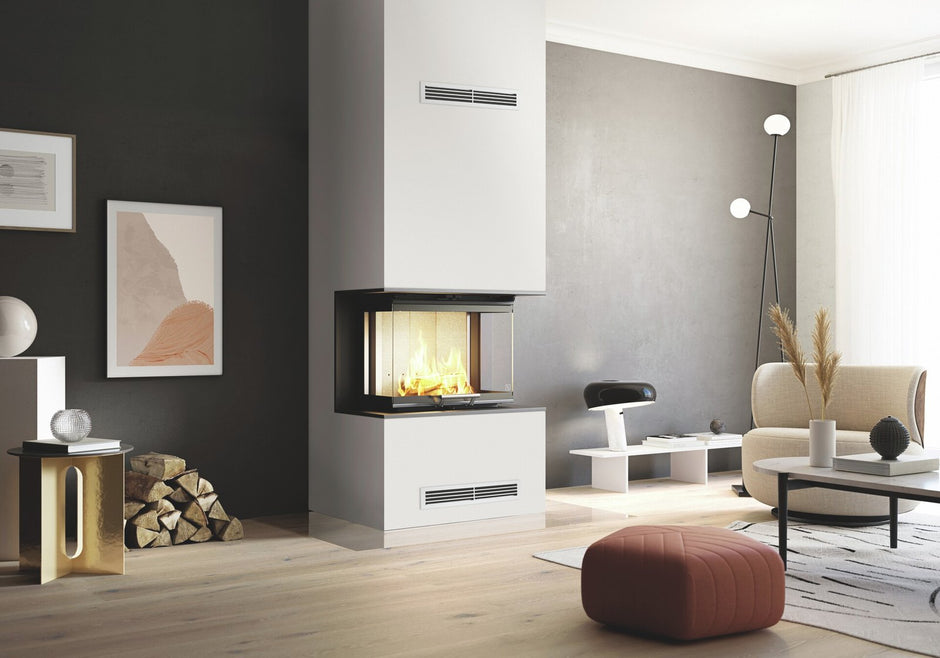

Steel fireplace SCAN 5004 FRL, with three glasses

Scan 5004 FRL is a modern fireplace insert with three panes of glass.

The Scan 5004 FRL is a high-quality fireplace insert designed to provide efficient heating and a modern design.

This model is distinguished by its three-glass construction, which allows you to enjoy the view of the fire from different angles, making it ideal for both classic and modern interiors.

Main advantages:

• Three large glass surfaces allow you to observe the flame from different parts of the room,
• The automatic soft-close door closing mechanism ensures smooth and silent door closing,
• Effective combustion air regulation allows for optimal control of the combustion process and reduced fuel consumption,
• Suitable for A++ class homes as it is possible to connect external air, which helps maintain the building's tightness and optimize energy consumption,
• The clean glass system with special air circulation prevents the glass from becoming sooted and ensures a constantly clear view of the fire.

Efficiency and heating capabilities.
Nominal power – 7.8 kW, effectively heats larger rooms.
Efficiency reaches 83 percent, so heat return is maximum and fuel consumption is minimal. The larger combustion chamber allows you to burn firewood up to 40 cm long. The ability to connect external air ensures clean combustion and helps save indoor oxygen.

Design and installation advantages.

• Minimalist and modern design fits in both traditional and modern interiors,
• Easily integrated into various interior solutions and can become the main accent of the room,
• Various frame options are available, tailored to individual interior needs,
• The ergonomic and safe handle is comfortable to use and does not heat up,

Technical data:
Heating area up to 160 square meters,
Chimney connection – 200 mm, connection possible at the top or at the back,
CO emissions – 0.09 percent,
Dust emission – 25 mg/Nm³,
NOx emission – 81 mg/Nm³,
OGC emission – 35 mg/Nm³,
Weight – 218 kg.

Why choose Scan 5004 FRL:

• An efficient and environmentally friendly fireplace insert, suitable for modern homes,
• High efficiency ensures lower fuel consumption and higher heat return,
• Suitable for passive houses, as connecting outside air helps maintain the building's energy efficiency,
• Easy maintenance thanks to clean glass technology that reduces the need for cleaning,
• A five-year warranty ensures durability and quality.

Scan 5004 FRL is a modern and functional fireplace insert that adds comfort, warmth and aesthetics to your home.
